Description:
**TOSIBOX 675 Industrial LTE Router – Secure VPN Gateway**
**IMPORTANT – MISSING ACCESSORY**

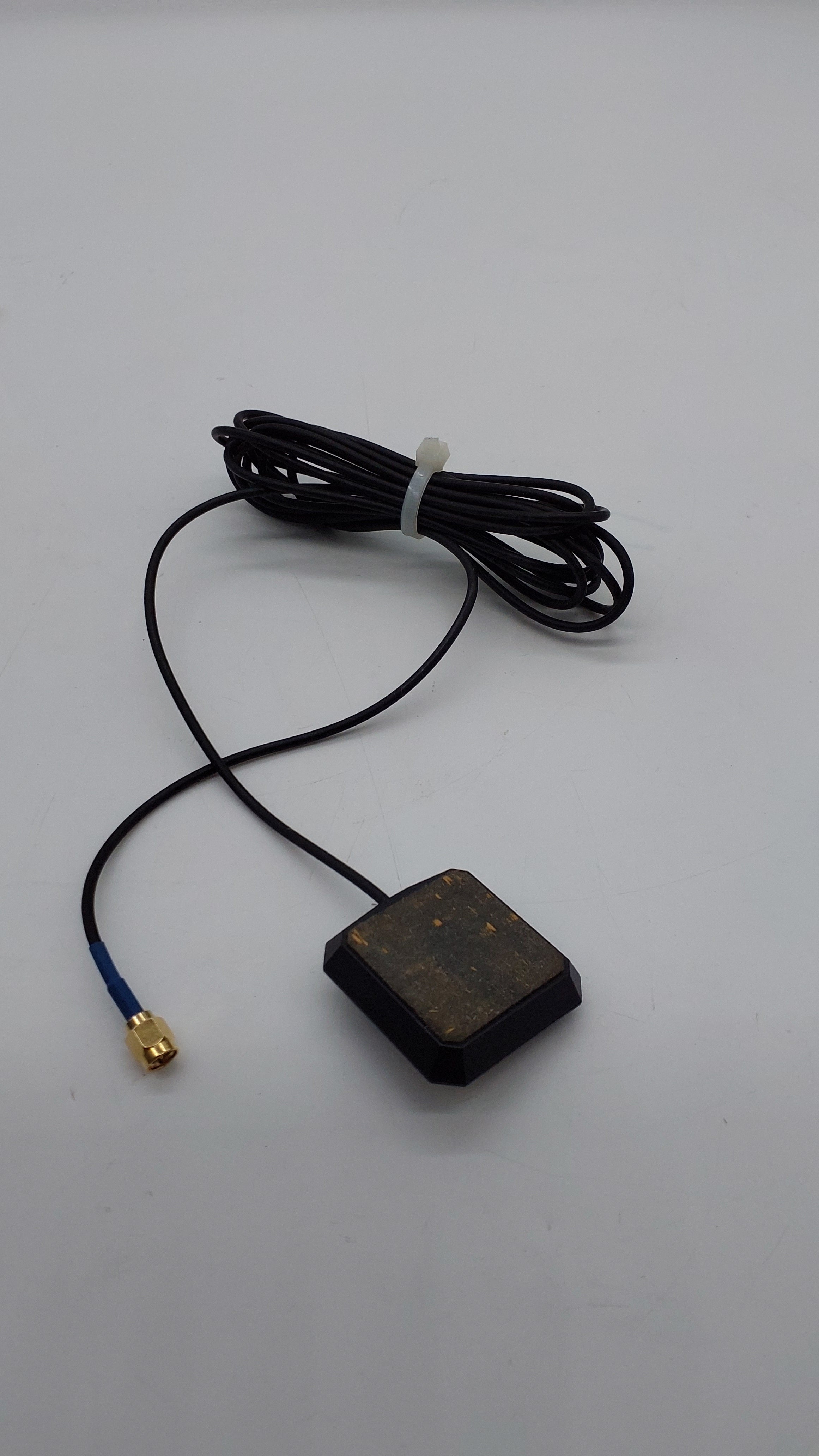

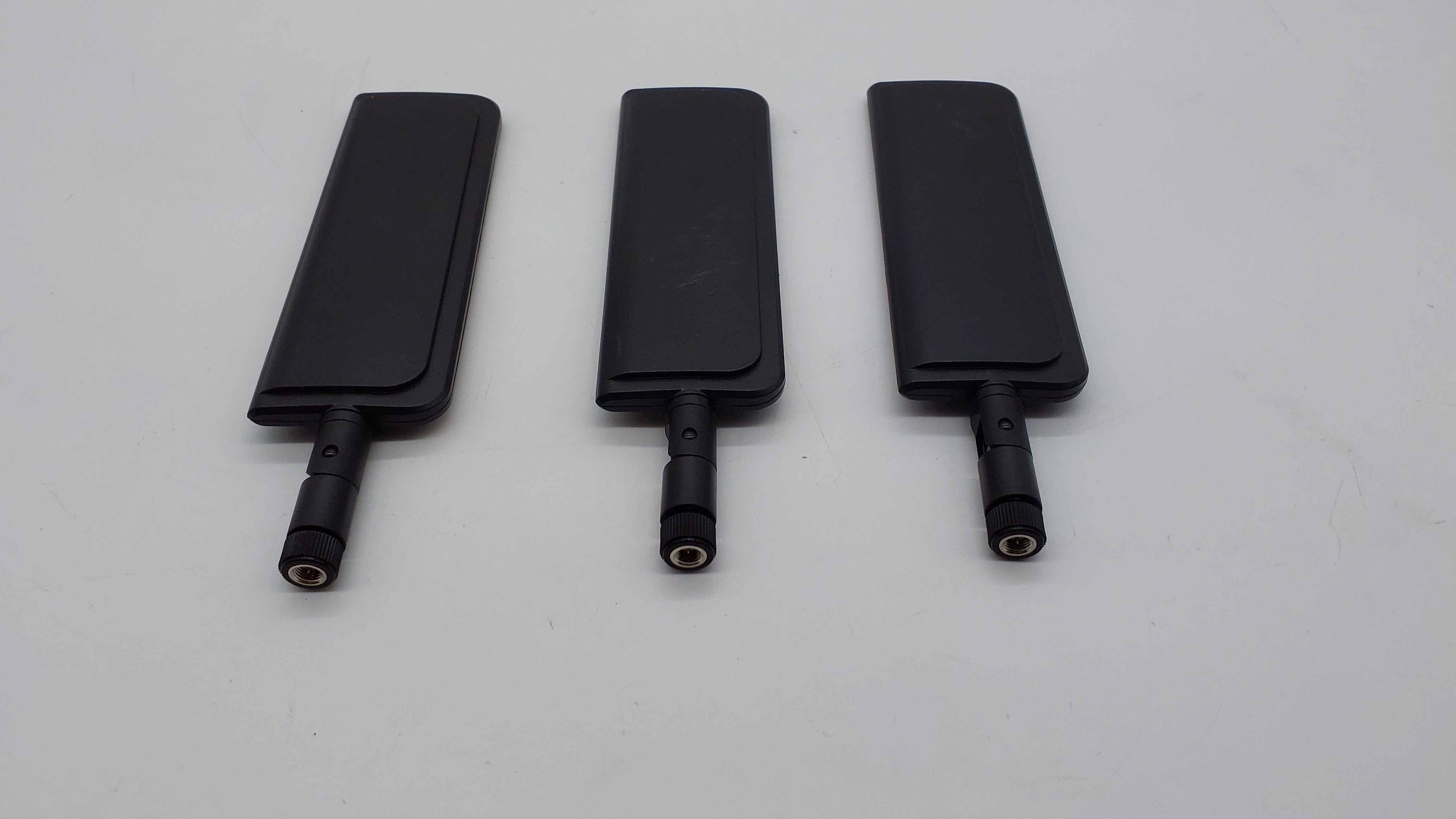

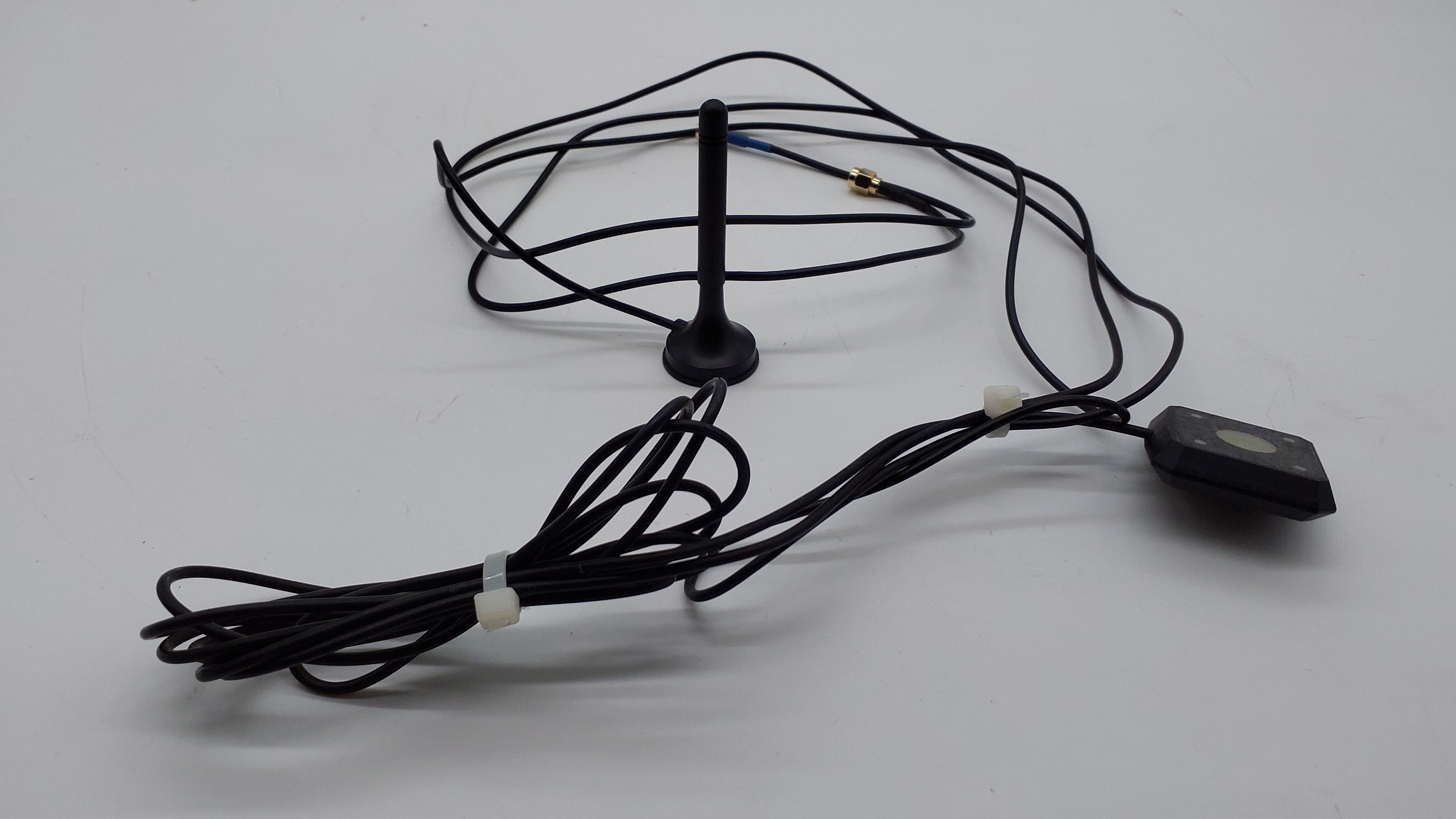

This device is normally sold with 2 LTE antennas, 2 WiFi antennas, 1 GPS/GNSS antenna, 1 Bluetooth antenna, and a power cord with adapter.
**This listing is missing 1 of the 2 WiFi antennas.** All other listed accessories are included.
**Product Overview**
The TOSIBOX 675 is a high-performance industrial connectivity device designed for demanding environments. It combines LTE, WiFi, and Gigabit Ethernet connectivity with advanced cybersecurity features for secure, reliable industrial networking.
Its durable aluminum alloy enclosure supports DIN rail mounting. Advanced VLAN capabilities enable tagged and untagged traffic, network segmentation, and secure communication between industrial systems.
Product Codes:
- TBL675 – EMEA/APAC
- TBL675US – USA/Canada
Certifications: CE, FCC, IC, RCM, CB Safety, SGS Safety Mark, Verizon.
**Performance & Reliability**
- Secure end-to-end encrypted VPN connections
- Dual-SIM slots for cellular operator redundancy
- TosiOnline automatic network reconnection
- Compatible with existing TOSIBOX products
- Up to 50 concurrent VPN connections
- Aggregate VPN throughput: Up to 70 Mbps
- Single VPN throughput: Up to 25 Mbps
- ChaCha20 cipher can improve throughput by 20%
- Supports dynamic, static, and private IP addresses
**Ports & Power**
- 1x Gigabit RJ-45 WAN port
- 3x Gigabit RJ-45 LAN ports
- 1x USB 2.0 Type-A
- 4-pin industrial DC power socket
- 9–50V DC input with reverse polarity and surge protection
- 2x RP-SMA WiFi antenna connectors
- 2x SMA LTE antenna connectors
- 1x GNSS connection
- DIN rail mounting on back and sides
- Maximum power consumption: 16W
**Networking Features**
- 4-way WAN priority and proxy server support
- Static IP or DHCP WAN configuration
- Automatic LAN discovery
- Static and dynamic routing
- NTP server and Modbus server
- HTTP/HTTPS management interface
- Built-in firewall and NAT
- GNSS positioning: GPS, GLONASS, BeiDou, Galileo, QZSS
- Automatic recovery from mobile network problems
**4G LTE – USA/Canada (TBL675US)**
- Quectel EG060K-NA cellular module
- LTE Cat-6, up to 300 Mbps download / 50 Mbps upload
- Dual SIM
- LTE FDD: B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B66, B71
- LTE TDD: B41
**4G LTE – EMEA/APAC (TBL675)**
- Quectel EG060K-EA cellular module
- LTE Cat-6, up to 300 Mbps download / 50 Mbps upload
- Dual SIM
- LTE FDD: B1, B3, B5, B7, B8, B20, B28, B32
- LTE TDD: B38, B40, B41
- WCDMA: B1, B3, B5, B8
**WiFi**
- IEEE 802.11 b/g/n, 2.4 GHz
- Up to 150 Mbps
- WEP, WPA-PSK, WPA2-PSK encryption
- Access point or client operation
- Frequency: 2.412–2.462 GHz, 11 channels
- Maximum output power: 20 dBm
**VLAN & Digital I/O**
- IEEE 802.1Q and 802.1ad compliant
- Up to 127 concurrent VLANs
- Separate subnet per LAN port
- Inter-VLAN routing
- Access/trunk port support
- Tagged and untagged VLAN traffic
- Port/IP-based configuration
- Selective LAN access via TOSIBOX Key
- 1x digital input: 0–6V low, 8–30V high
- 1x digital output: 30V, 300mA maximum
- Software-configurable I/O
- Separate I/O cable required
**Physical Specifications**
- Dimensions: 115 x 44 x 95 mm (4.52 x 1.74 x 3.74 in)
- Weight: 456g (1.00 lb)
- Protection rating: IP30
- Node operating/storage temperature: -40°C to +75°C
- Power supply operating temperature: -10°C to +40°C
- Power supply storage temperature: -20°C to +70°C
