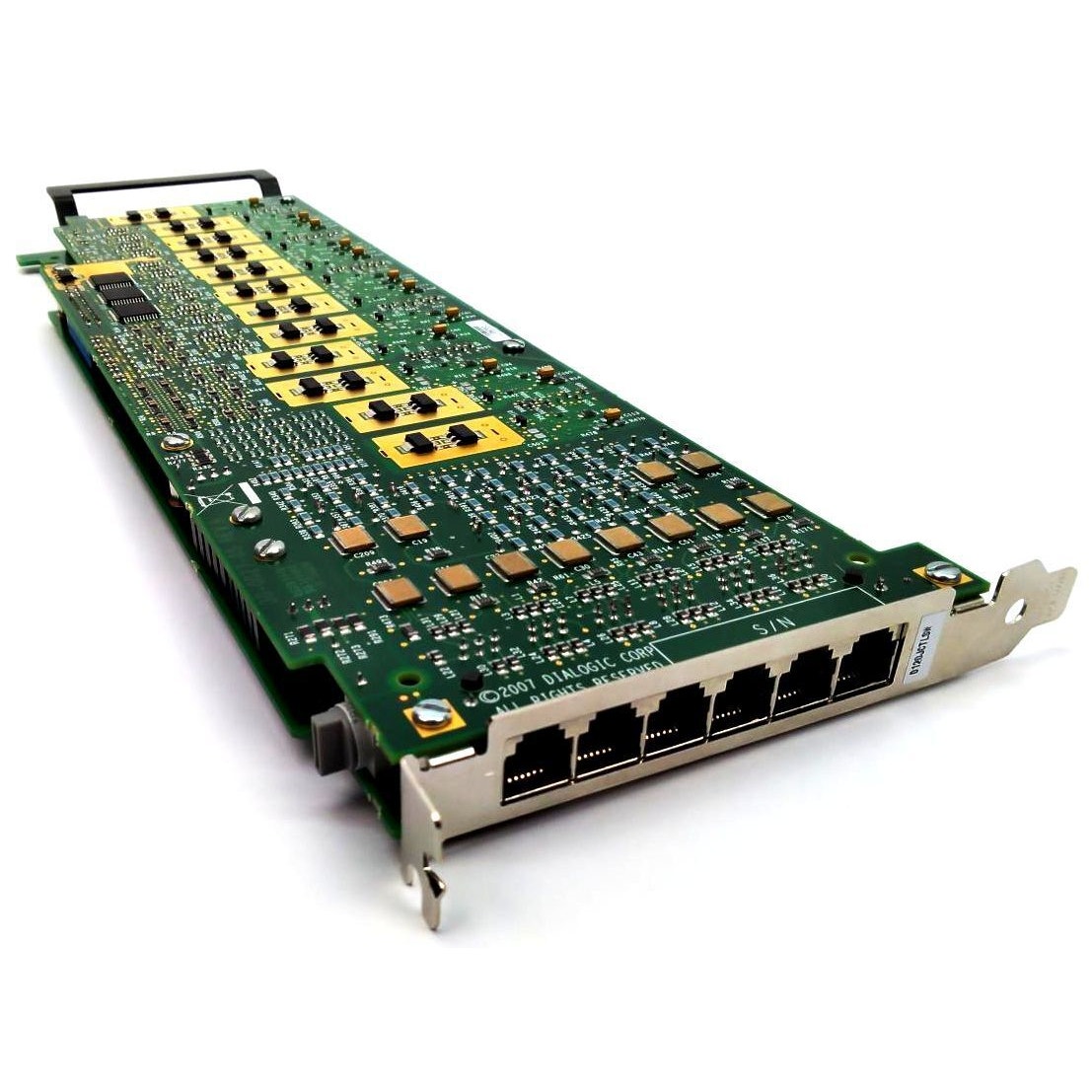

Dialogic D120JCTLSW 12 Port Analog Loop Start PCI Media Board

/ 1
Type: Unknown Type
Vendor: Dialogic

Description:

The Dialogic D120JCT-LSW (Genuine Part: 881-762-39N) is a high-performance, 12-port analog PCI media board designed for developing advanced communications applications such as Interactive Voice Response (IVR), voicemail, and auto-dialers.
Port Capacity: 12 analog telephone interface circuits for direct connection to loop start lines.

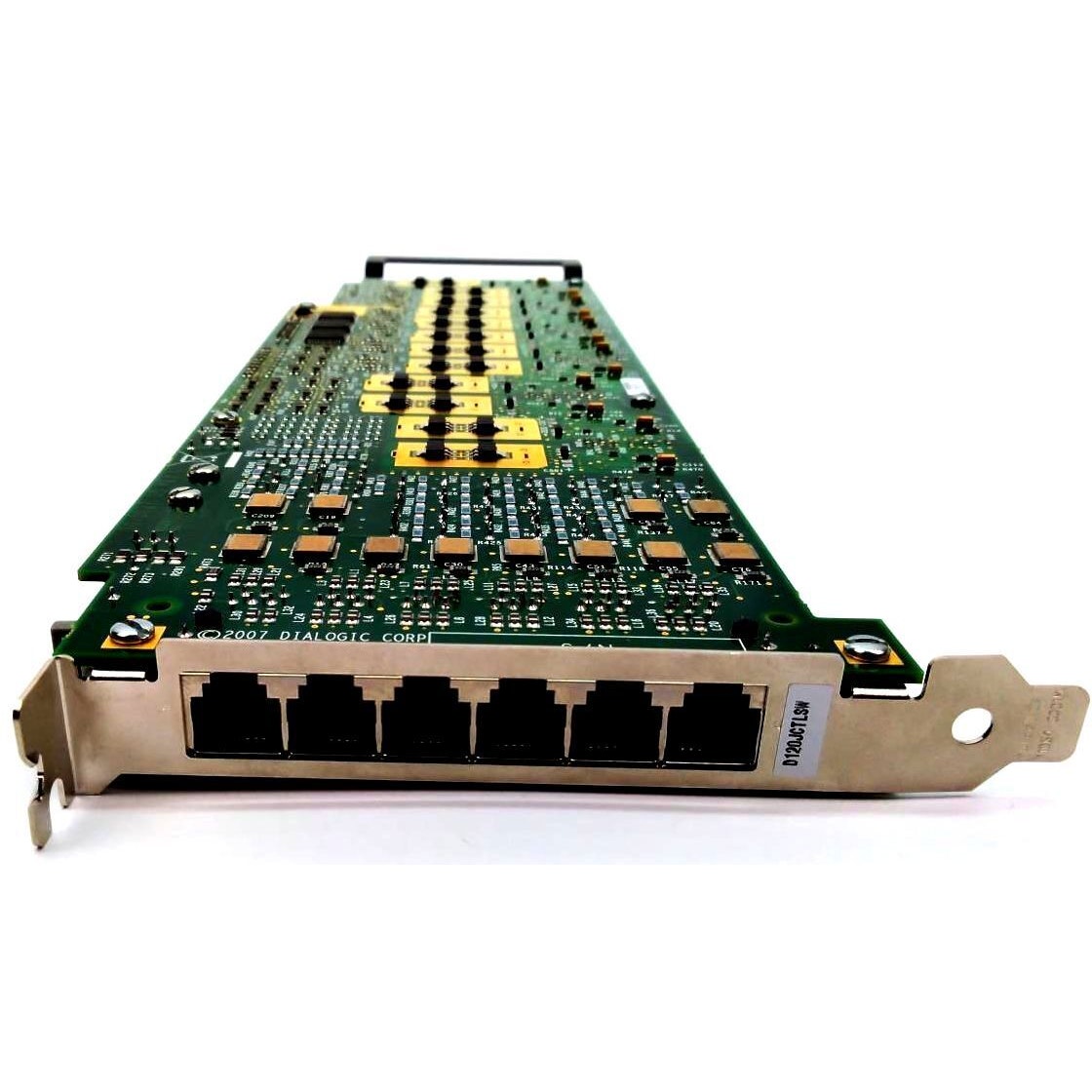

Physical Interface: 6 RJ-14 jacks, each supporting 2 channels.

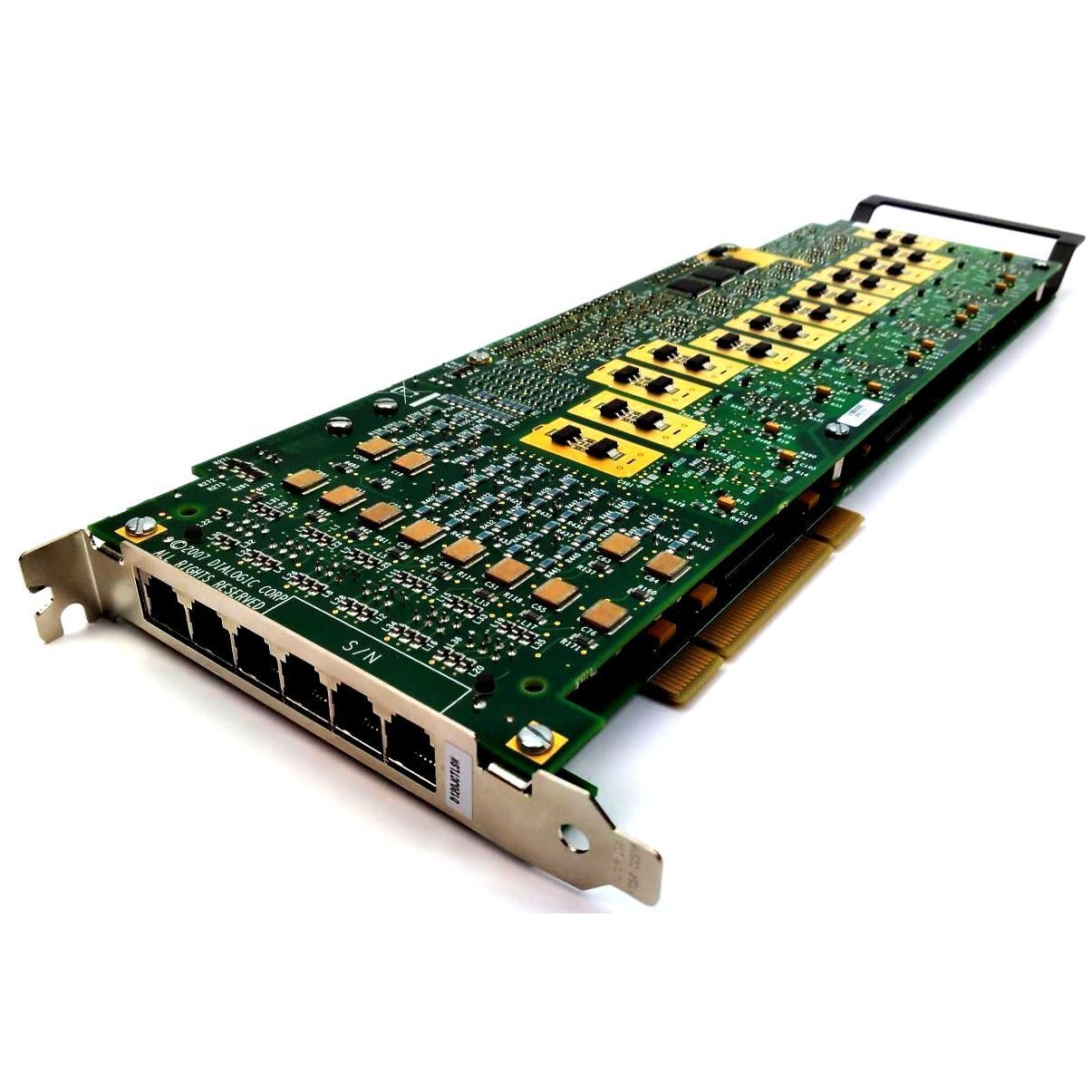

Bus Type: Universal 32-bit PCI connector, compatible with both 3.3V and 5.0V bus signals.
Processor: Intel 80486 GXSF running at 32.768 MHz.
DSP: Freescale DSP56303 @ 100 MHz for off-loading real-time signal processing.
Media Features: Supports voice, fax (up to 4 channels), and software-based speech recognition.
Networking: Includes a CT Bus (H.100) connector for resource sharing with other compatible boards in the same chassis.
Operating Systems: Compatible with Windows (including Windows 10/11 Pro via the latest Sangoma System Release 280) and Linux.
Software: Supported by Dialogic System Release (SR) 6.0, 5.1.1, and 5.01.
