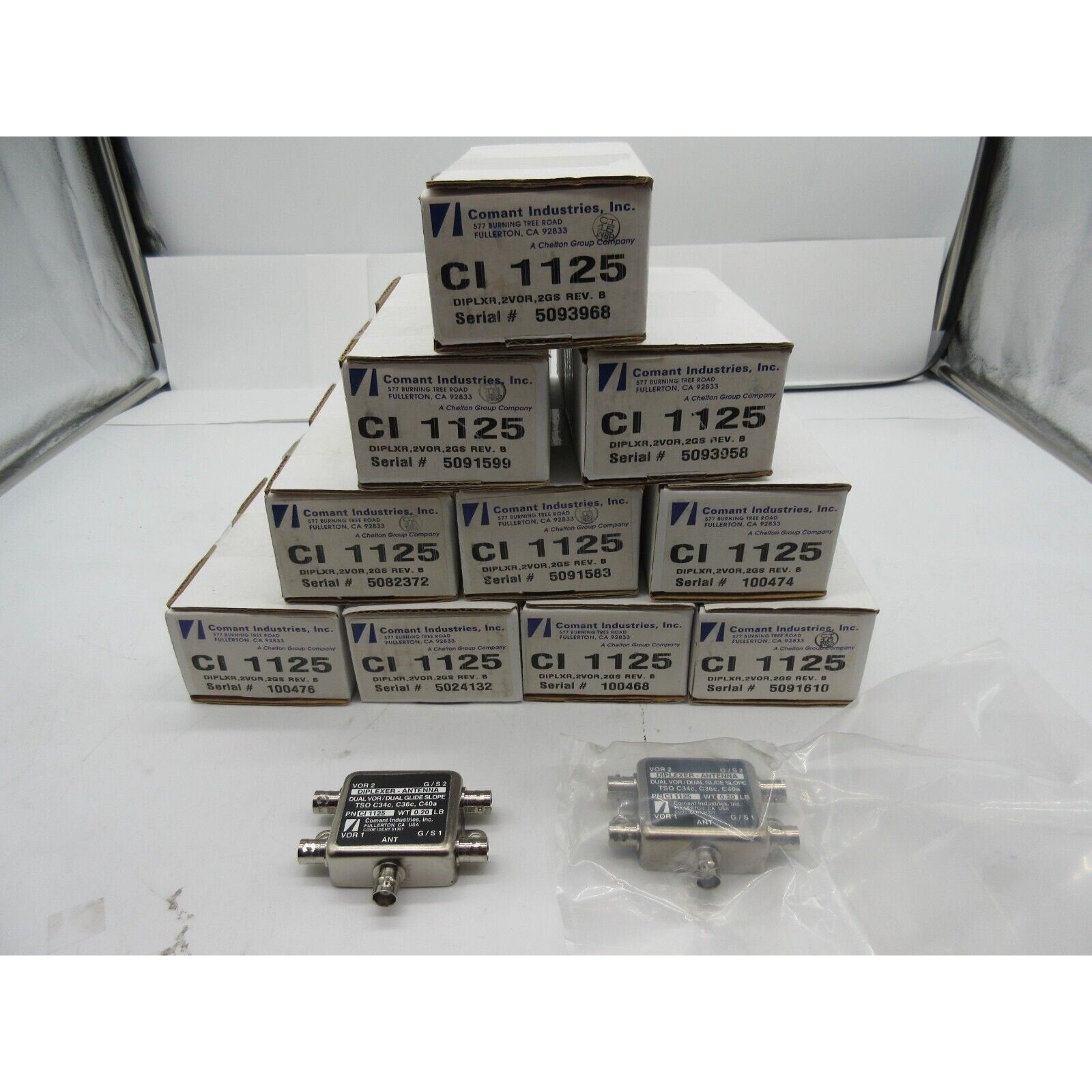

COMANT Dual VOR/Dual Glidescope Diplexer-antenna #CI 1125 Really NEW p/n CI1125SHOP

/ 55
Type: Unknown Type
Vendor: Comant

Description:

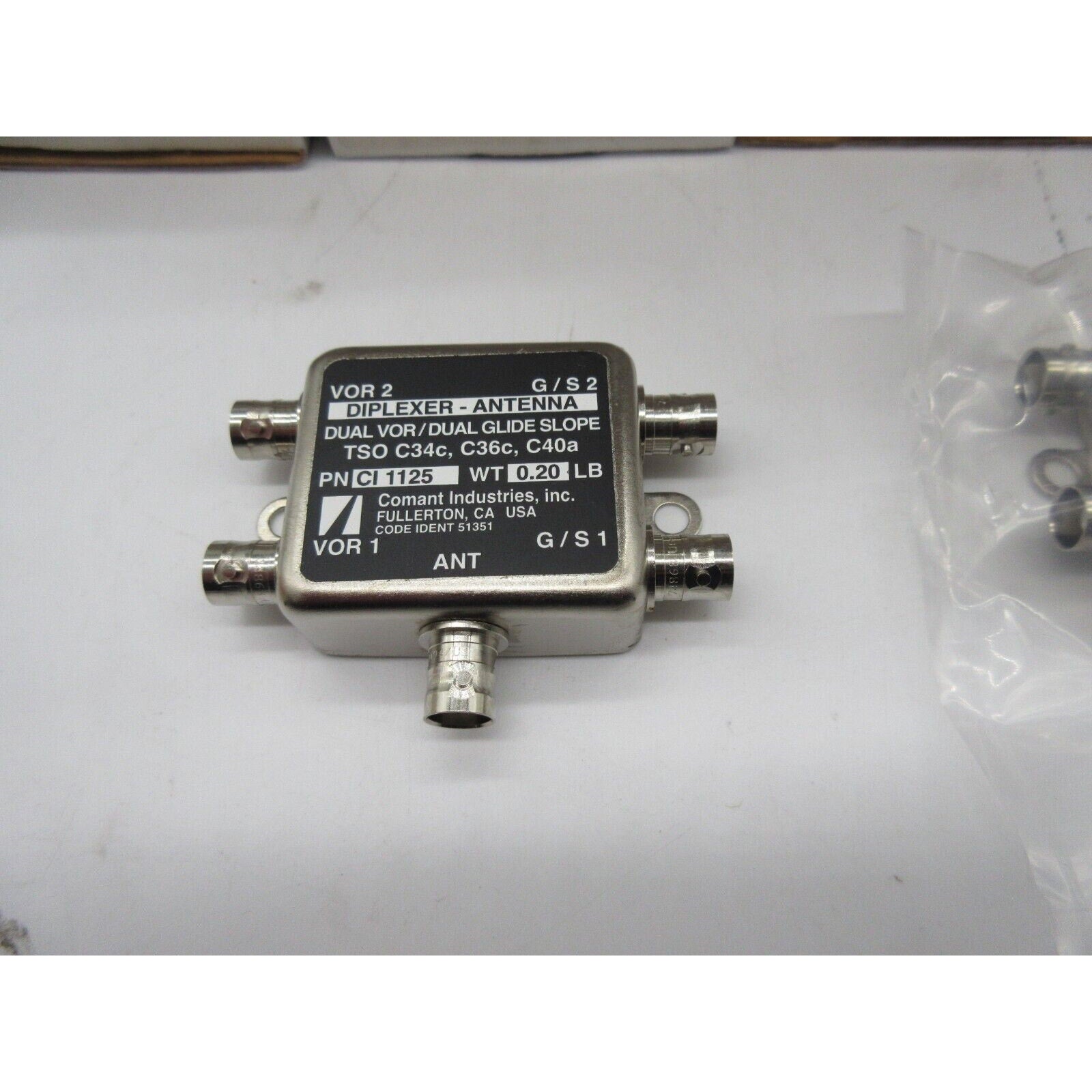

The Comant CI-1125 is a high-reliability dual VOR/dual glideslope diplexer designed to allow two VOR receivers and two glideslope receivers to operate from a single shared antenna. It is an internal mount component housed in a compact aluminum body, frequently used in aircraft with Garmin GNS or GTN series navigators.
Core Specifications
Frequency Range: 108–118 MHz (VOR/LOC) and 329–335 MHz (Glideslope).
Connectors: Standard BNC Female (Female); a TNC version (CI-1125-TNC) is also available.
Performance: Maximum insertion loss of 0.6 dB and minimum isolation of 20 dB between VOR and GS ports.
Certifications: FAA TSO-C34c, C36c, and C40a.
Weight: Lightweight at approximately 0.20 to 0.25 lbs.
