Axis 291 1U Server Rack High-Density Video Encoder Rack w/ 3 241Q 4 Ch
Axis 291 1U Server Rack High-Density Video Encoder Rack w/ 3 241Q 4 Ch Servers
Type: Unknown Type
Vendor: Axis
Description:

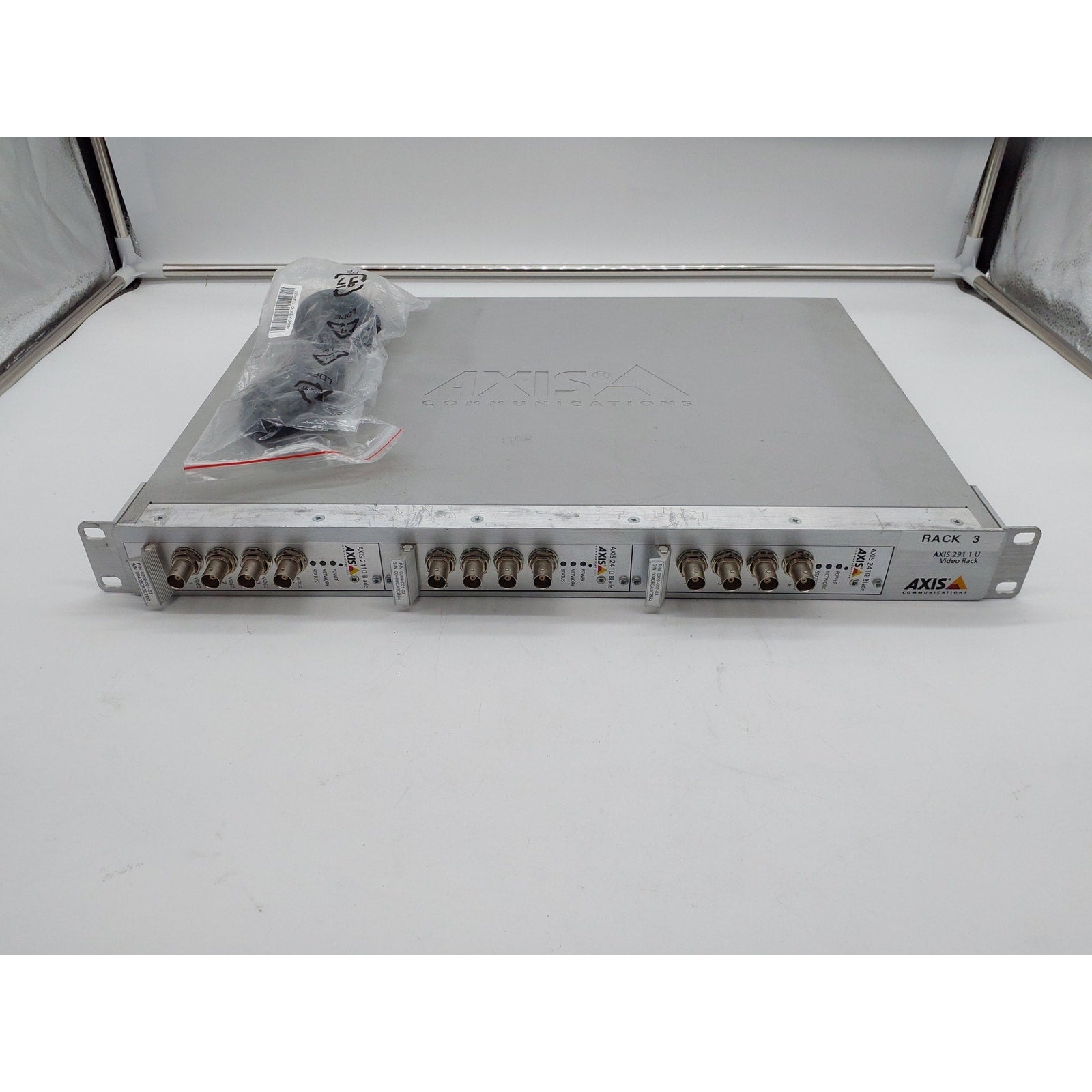

The Axis 291 1U Video Server Rack with three Axis 241Q blades is a high-density analog-to-IP migration solution that allows you to integrate up to 12 analog cameras into a digital network using only one Ethernet port.Capacity: 3 expansion slots for interchangeable, hot-swappable video encoder blades.
Networking: Single 10/100/1000Base-T Ethernet port (RJ-45) for all channels.

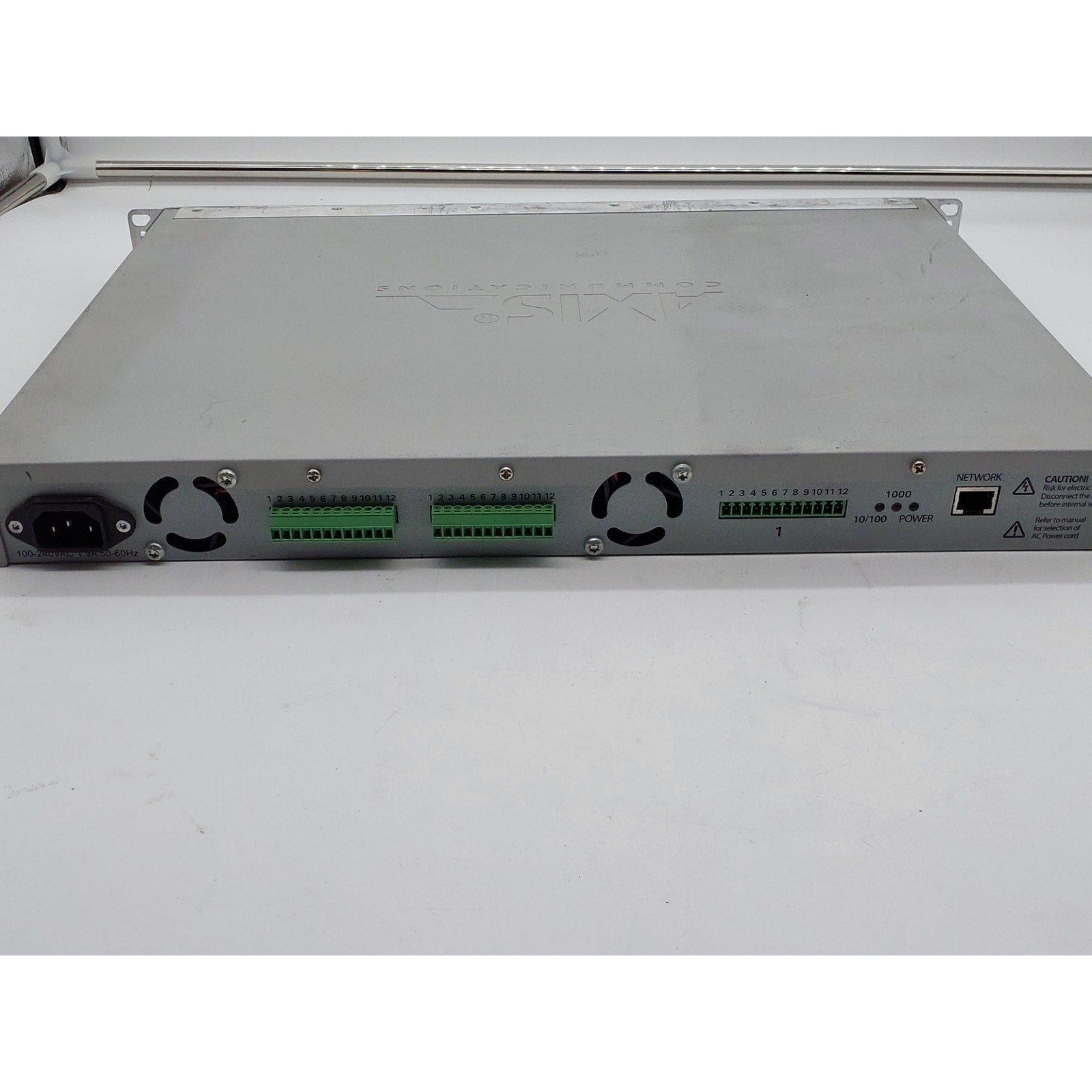

Rear Connections: Each of the 3 slots has dedicated I/O terminal blocks providing 4 alarm inputs, 4 outputs, and RS-485/422 half-duplex for PTZ control.
Power: Built-in universal power supply (100–240V AC, 80W max).
Dimensions: Standard 19" 1U rack-mountable chassis (Height: 1.7", Depth: 13.6").
Axis 241Q Blade Specifications

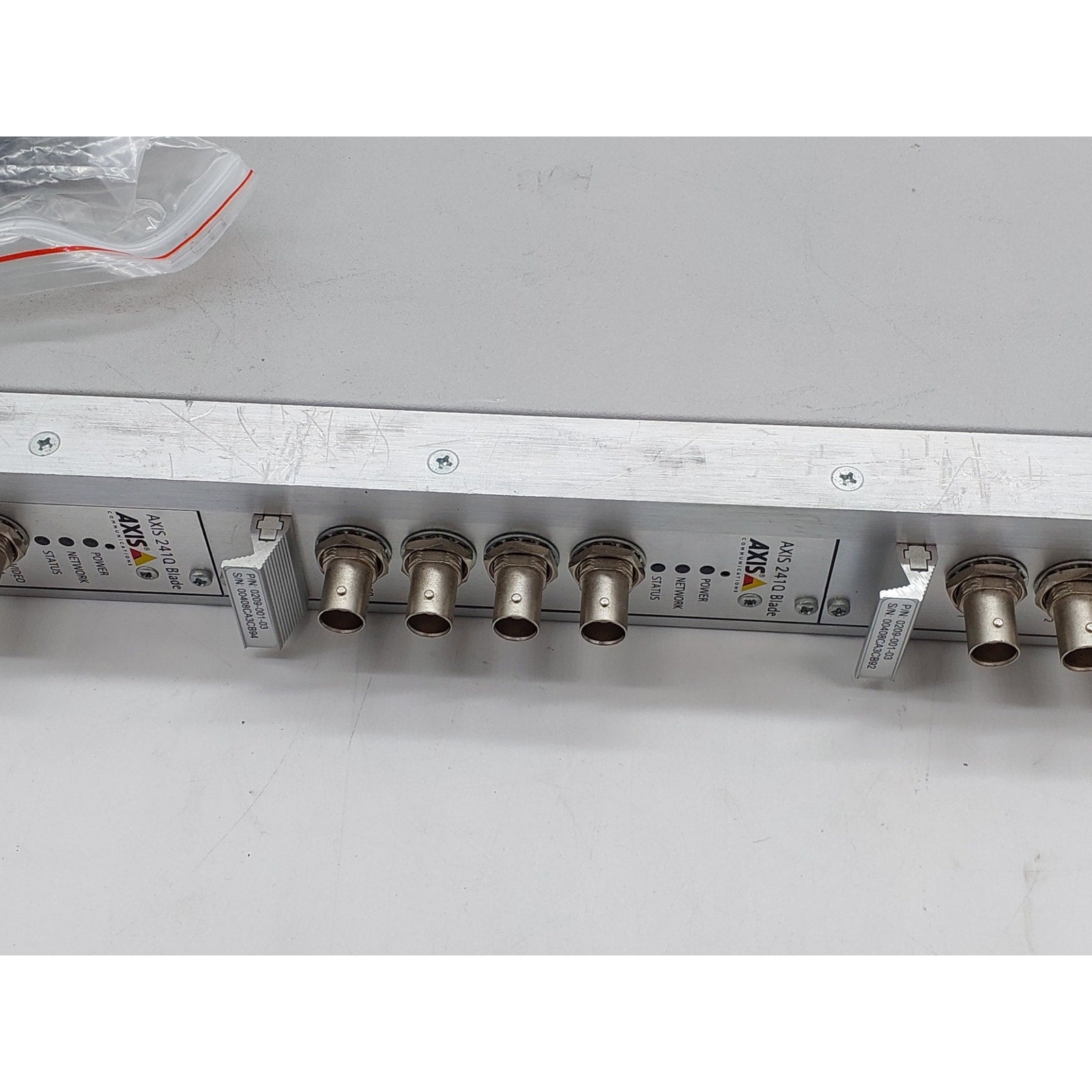

Channels: 4 analog BNC video inputs per blade (total of 12 for this full 3-blade setup).
Video Compression: Supports simultaneous MPEG-4 Part 2 and Motion JPEG.
Max resolution of 704 x 480 (NTSC) or 704 x 576 (PAL).
Up to 30 fps (NTSC) or 25 fps (PAL) at CIF resolution.
PTZ Support: Integrated drivers for a wide range of analog PTZ cameras via the rack's serial ports.
