RadiSys EPC-7 486 VXI Bus Processor Board 33MHz – Tested Working

/ 1
Type: अज्ञात प्रकार
Vendor: Radwell

Description:

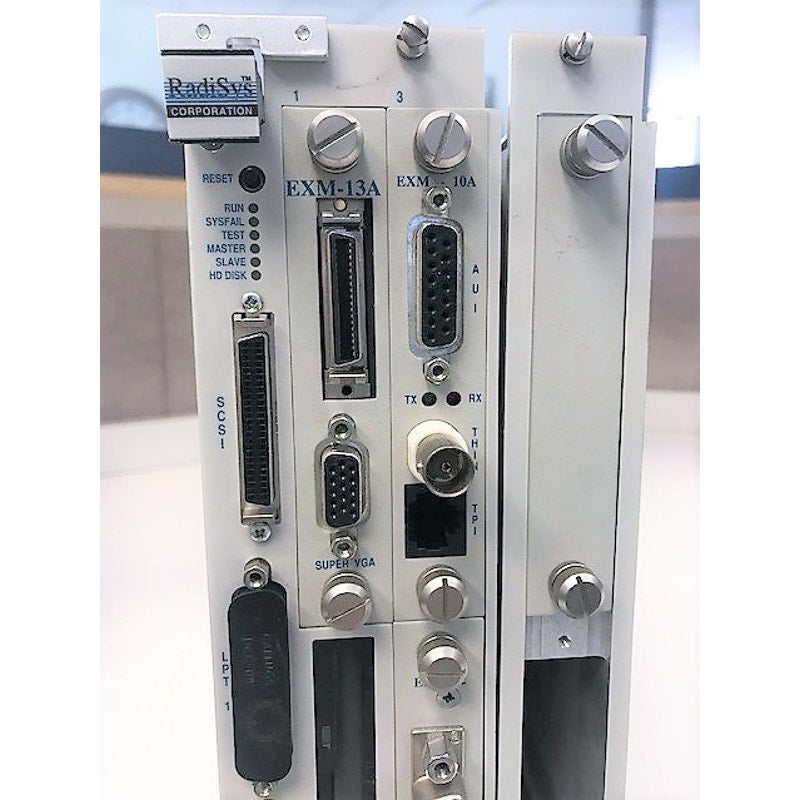

The RadiSys EPC-7 is a legacy C-size VXIbus embedded computer designed to act as a system controller, resource manager, or slot-0 controller for high-performance test and measurement systems.
Processor: Intel 486 running at 33 MHz (variants also exist at 50 MHz and 100 MHz).
Architecture: IBM PC compatible, supporting standard PC software and operating systems like DOS and Windows.
Bus Performance: Supports 8-, 16-, and 32-bit VXIbus data transfers in both master and slave mode.
RAM: Typically ranges from 8 MB to 64 MB.
Hard Drive: Onboard options often between 100 MB and 500 MB.
Floppy Drive: Built-in 3.5" floppy drive support.
Front Panel: Serial (COM1), Parallel (LPT), PS/2 Keyboard, and a SCSI-2 port.
Expansion: Includes two EXM expansion slots for adding specific I/O modules.
