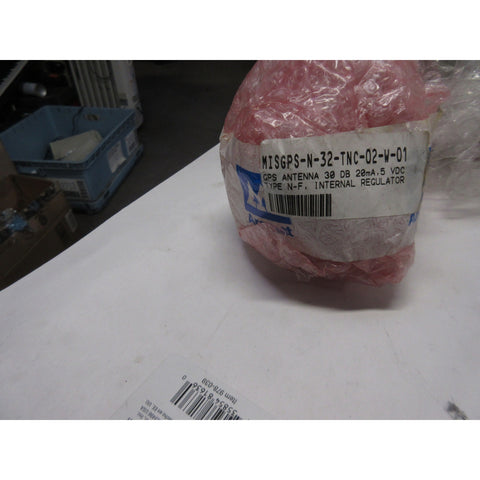

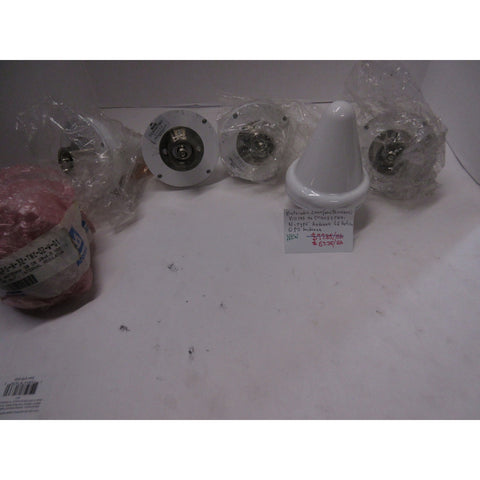

MATSUSHIA (NOW PANASONIC) VIC 100 OR CCAH32TM01 N-F TYPE ANTENNA

Description:

The Panasonic (formerly Matsushita) VIC-100 series, specifically the CCAH32TM01 (or similar N-type female variants like CCAH32ST03), is a specialized active GPS L1 antenna. It is primarily used as a timing and synchronization reference for telecommunications infrastructure.
Center Frequency: 1575.42 MHz
1.023 MHz (GPS L1 band).
Total Gain: 38 dB typical / 30 dB minimum (at 90
elevation).
Noise Figure: 1.8 dB typical / 2.2 dB maximum.
VSWR (Output): 1.5 typical / 2.5 maximum.
Out-of-Band Attenuation: 60 dB typical at 1575.42 MHz
50 MHz.
Polarization: Right-hand circular (RHCP).
Impedance: 50 Ohms.
Operating Voltage: 3.5V to 6.0V DC (Standard 5V
0.5V).
Operating Current: 20 mA typical / 27 mA maximum.
DC Feed: Provided via the center conductor of the coaxial cable.
Connector: N-type female (N-F).
Dimensions: Approximately 90 mm diameter x 98.4 mm height (excluding connector).
Weight: Approximately 200g to 295g, depending on the specific mounting variant.
Operating Temperature: -40
Materials: UV-stabilized polycarbonate radome with a die-cast aluminum bottom housing.
Lightning Protection: Standard models offer 80V protection (per IEC1000-4-5); "Enhanced" versions (e.g., CCAH32ST14) offer up to 4000V protection.
