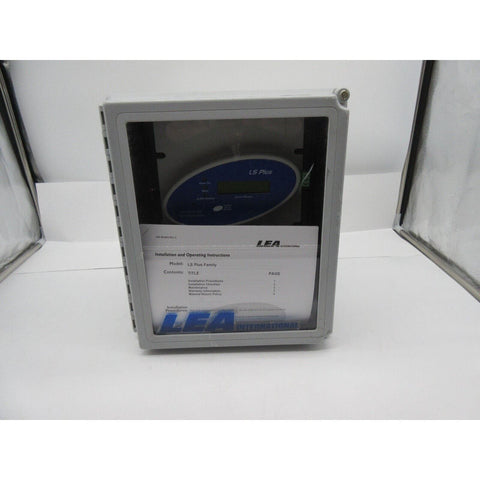

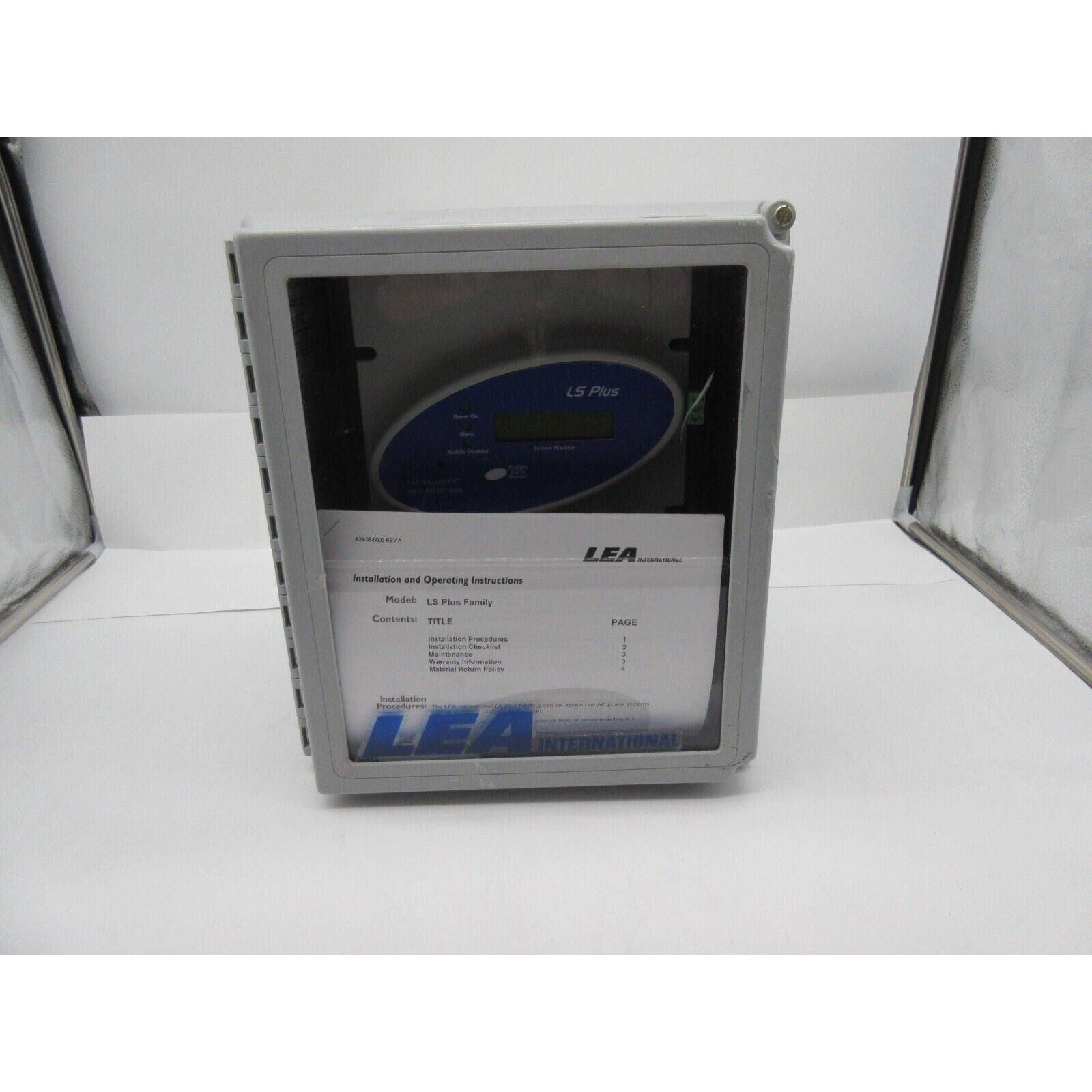

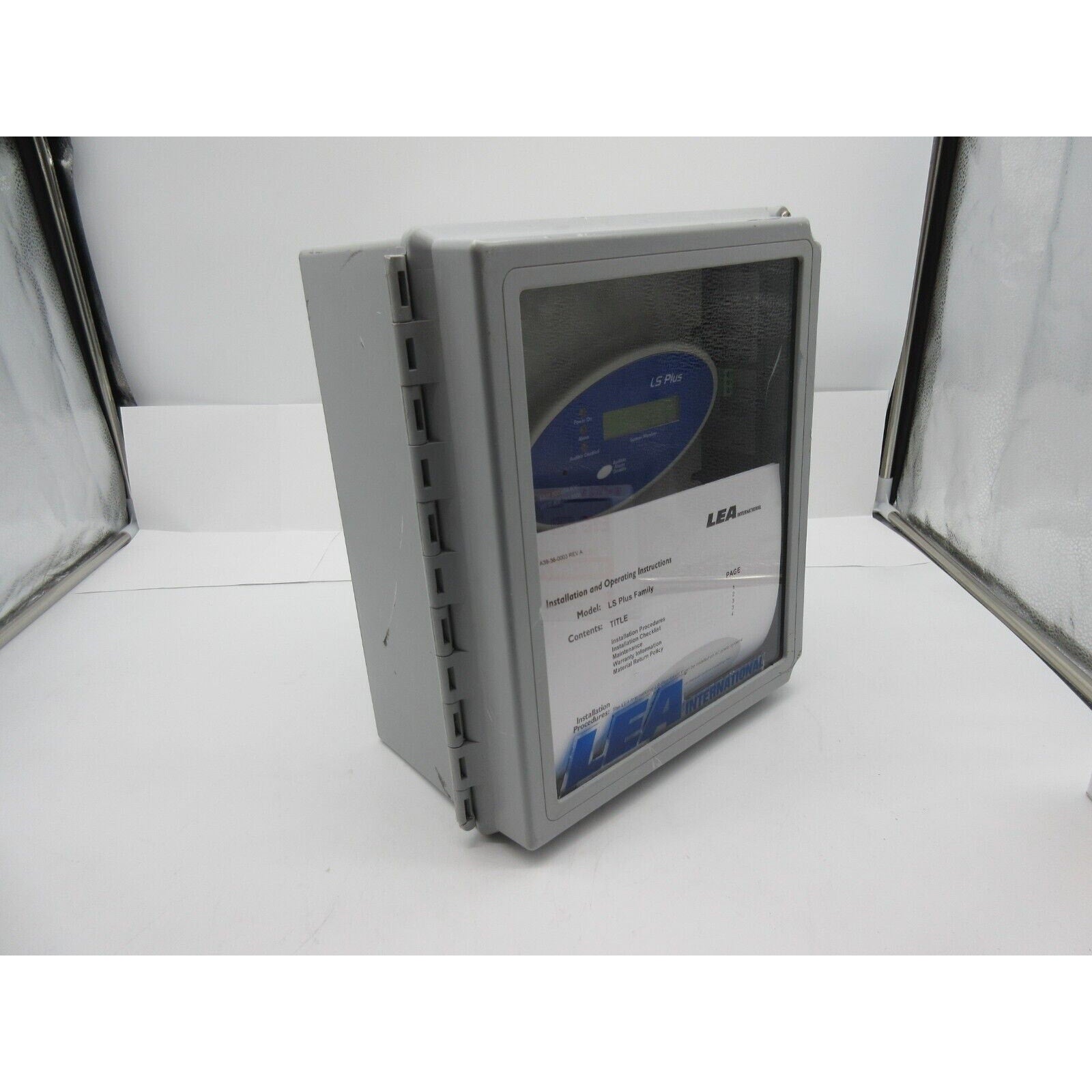

LEA INT'L High Voltage Surge Protector, LS-200 PLUS-1 120/208-3Y, NEW

/ 2
Type: Electronics
Vendor: LEA International

Description:

The LEA International LS-200 PLUS-1 120/208-3Y is a high-capacity industrial AC surge protection device (SPD) designed for 120/208V 3-Phase Wye electrical systems. Manufactured by Transtector (a brand under Infinite Electronics), it is primarily used to protect critical infrastructure from lightning strikes and transient voltage spikes.
Core Specifications
Surge Capacity: 200 kA per phase.
Electrical Configuration: 120/208 VAC, 3-Phase Wye, 50/60 Hz.
Protection Technology: Metal Oxide Varistor (MOV) circuits with thermal protection.

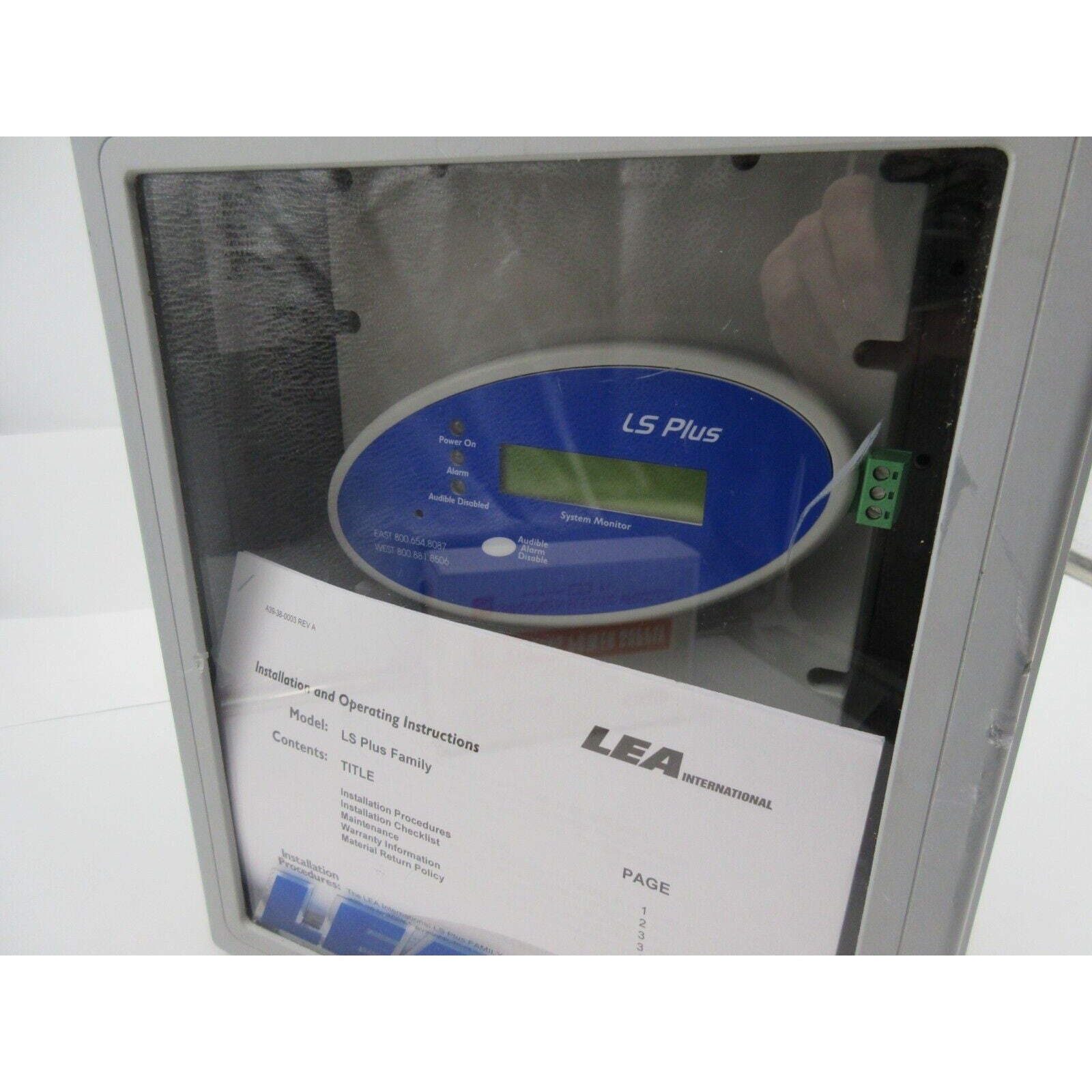

Diagnostics: Includes a digital visual indicator, audible alarm with disable switch, and remote status monitoring via Form C dry contacts.
Enclosure: NEMA 3R rated (suitable for indoor/outdoor use), typically made of steel.
Safety Ratings: UL 1449 4th or 5th Edition listed as a Type 1 or Type 2 SPD.
Response Time: <25 nanoseconds.
